DESCRIPTION
Asset Tracking Beacon
Bluetooth 5.0 Beacon
Easy-to-replace CR2477 battery, 4-years battery life
IP67 Waterproof, small size dia.40mm*15mm
Accelerometer sensor optional
SDK or Library Provided
Support iBeacon/Eddystone/KSensor simultaneously
Latest Nordic nRF52 series based

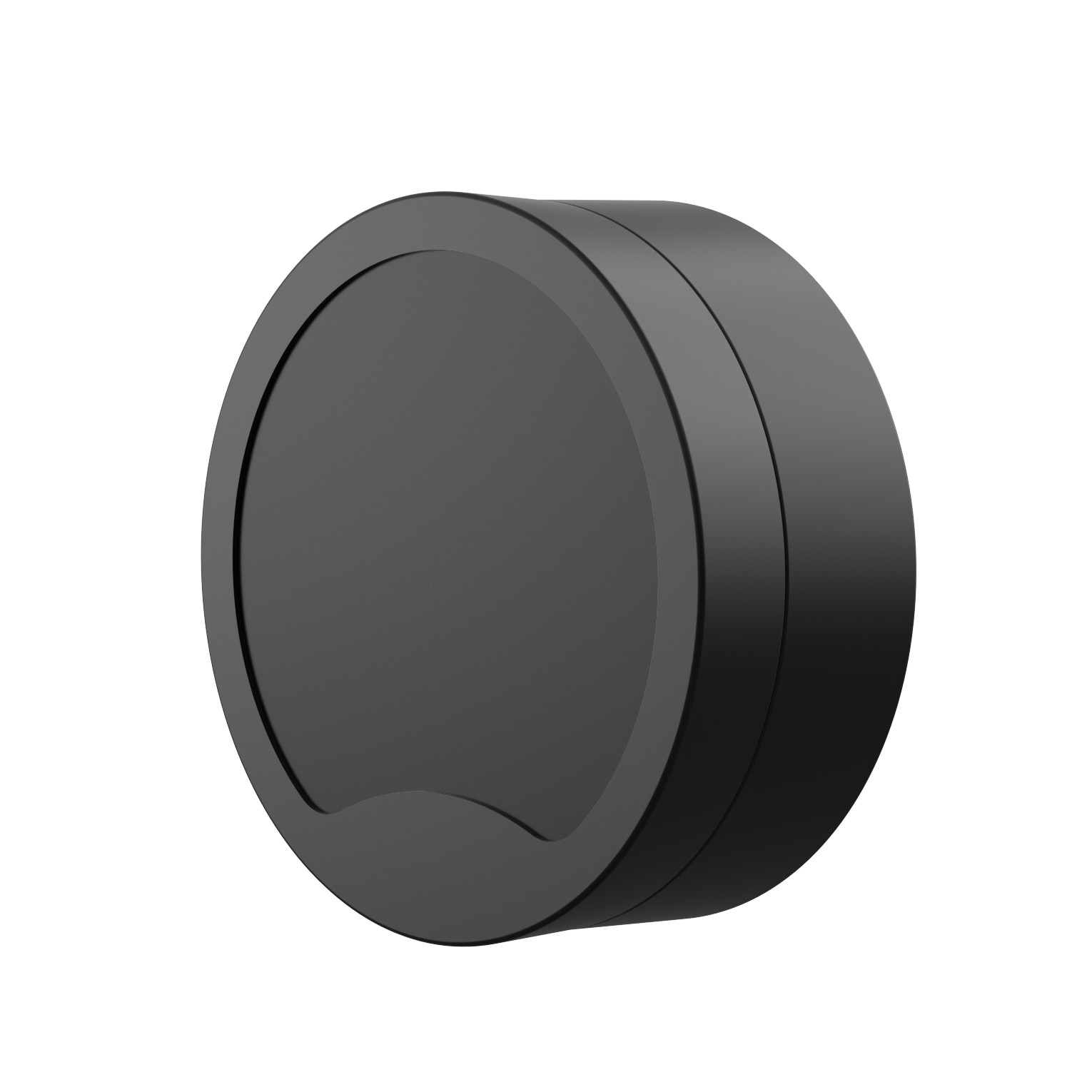

K5 Asset Tracking Beacon is a IP67 waterproof long battery life beacon with the latest and ultra low power chipset nRF52 series and BLE 5.0 technology.
K5 Bluetooth asset tracking beacon is BLE5.0 low energy technology, it uses CR2477 battery, The battery life is up to 4 years. It’s easy to unscrew and replace the battery. It has a industrial and attachable design, K5 asset tracking beacon has very strong signal, it is designed for commercial advertising and indoor location-based, asset tracking beacon service, proximity marketing beacon, warehouse management and etc.
K5 Asset Tracking beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. K5 Beacon can be scanned and interpreted by iOS and Android BLE -enabled devices or beacon gateway.
FEATURES
Bluetooth Low Energy, easy-to-replace battery asset tracking beacon
Ultra-low power consumption chipset nRF52 series
Support iBeacon, Eddystone & KSensor advertisements simultaneously
Firmware update Over The Air (OTA)
Logo and color customizable (MOQ)
Provided with your own configuration (MOQ)
100% Configurable Parameters
DOWNLOAD
Waterproof
Motion sensor (accelerometer) optional
Compatible with iBeacon and Eddystone (UID, URL, TLM) and KSensor at the same time.
All the parameters of this product can be modified via configure APP or KGateway.
pRODUCT DETAILS
SPECIFICATIONS
Material for shell | ABS+Silicone |
Color | White/black |
Size | Dia.40*15.7mm |
Weight | 25g |
Accessory | N/A |
Battery | CR2477 (replaceable) |
Battery life | >48 Months (Based on Broadcast Interval 1s and TX power 0dBm) |
Waterproof level | IP67 |
Main Features | |
Support Protocol | ◆Apple iBeacon ◆Eddystone URL ◆Eddystone UID ◆Eddystone TLM ◆Ksensor |
OTA | Support |
Button | Internal button |
LED | NA |
Sensor | ◆Temperature sensor, error:+/-3℃ ,-40℃~70℃; ◆Acceleration sensor |
Rechargeable | No(Its battery can be replaced ) |
Programmable parameters | ◆Tx Power/Advtisement period/Lock password; ◆iBeacon UUID/Major/Mior; ◆Compatible with Eddystone, URL, UID(NamespaceID, SerialID) ◆KSensor |
Buzzer | N/A |
Others | ◆Support Non connection advertisment Mode ◆Support Configruation advertisment Mode ◆Support Factory reset |
Physical features | |
Chipset | nRF52 series |
BLE5.0 | BLE5.0, Supportable(High throughput, Advertising Ext, Improved coexistence) |
Wireless Frequency Band | 2.4GHz |
Transmitting range | ◆BLE5.0 *100 meters in the open space. The range depends on physical environment. |
Powered by | 3V CR2477 coin battery |
Display way | Beacon Gateway or via Phone App |
Beacon Factory Default Setting | |
iBeacon | ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001 ◆MajorID:0x0001 ◆MinorID: 0x0001 |
Tx Power | 0dBm |
Broadcast interval | 1000ms |
Eddystone UID | ◆Namespace ID: 6B6B6D636E2E636FD01 ◆InstanceID ID:0x000000000001 |
Eddystone URL | URL: www.kkmcn.com |
Eddystone TLM | ◆Battery voltage; ◆Temperature; ◆Advertisements count/Time since power-up |
Working environment | |
Working temperature | -20℃ ~+65℃(default); -30℃ ~+70℃(optional) |
Storage temperature | 10℃~+25℃,≤65%RH |
