S6 Bluetooth Temperature and Humidity Sensor

S6 Bluetooth Temperature Sensor

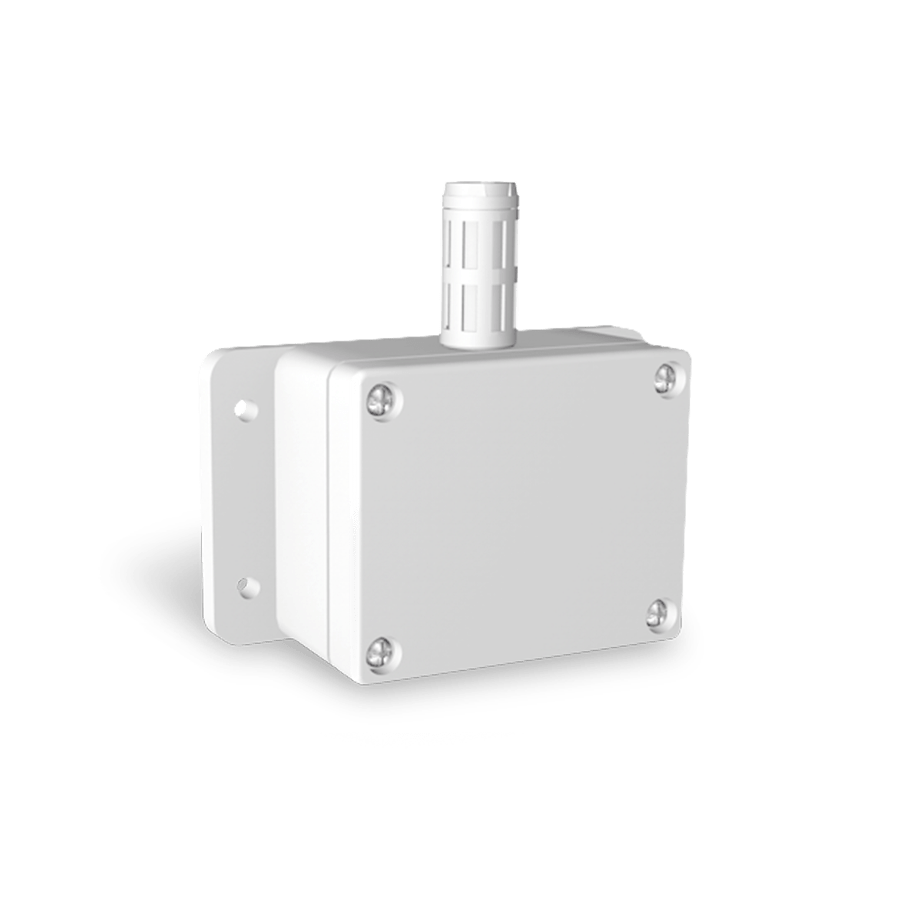

S6 Bluetooth Temperature Sensor is a BLE Beacon featuring an ultra-low power nRF52 series chipset and BLE 5.0 technology. S6 Bluetooth temperature sensor is made from industrial plastic, comes with IP67 waterproof and dust proof.
It is suitalbe in different hostile environment.

S6 Temprerature and humidity industrial logger includes a high-accuracy temperature-humidity sensor and an optional 3-axis accelerometer. It is designed for applications such as temperature and humidity detection, asset tracking, and indoor location-based services.

IP67 Waterproof

Temperature & Humidity Sensor

PHY Coded Long Range

60,000 T&H Logger Records

>> DESCRIPTION

High accurate temperature and humidity S6 sensor beacon with ±0.4°C accuracy ratings
Long battery life of 8+ years powered by a 2600mAh ER14505 Lithium battery
IP67 waterproof
Reliable NORDIC ® nRF52 series chipset enables Bluetooth 5 compliance and PHY
Support offline temp. & humidity records. Data logger over 60000+ records
Compatible with iBeacon, Eddystone (UID, URL, TLM), Kbeacon and KSensor protocols simultaneously
Programmable via the KBeacon Pro app or KKM Gateway to customize broadcast settings, thresholds, and more

S6 Temperature Sensor is a BLE Beacon featuring an ultra-low power nRF52 series chipset and BLE 5.0 technology. It is equipped with four screw holes for easy installation.

S6 temperature sensor tag includes a high-accuracy temperature-humidity sensor and an optional 3-axis accelerometer. It is designed for applications typically temperature and humidity detection. Thanks to its smart electronic design, powerful algorithm, strong and durable plastic, the S6 temperature & humidity sensor logger can apply to different scnearios such as smart farming, temperature monitoring in beach, seashore.

>> DOWNLOAD

S6 Temperature and Humidity Sensor

Support offline temp. & humidity records.
Data logger over 60000+ records
IP67 waterproof & Battery replaceable design
Compatible with iBeacon and Eddystone (UID, URL, TLM) and Kbeacon and KSensor at the same time.
All the parameters of this product can be modified via configure APP or KGateway.

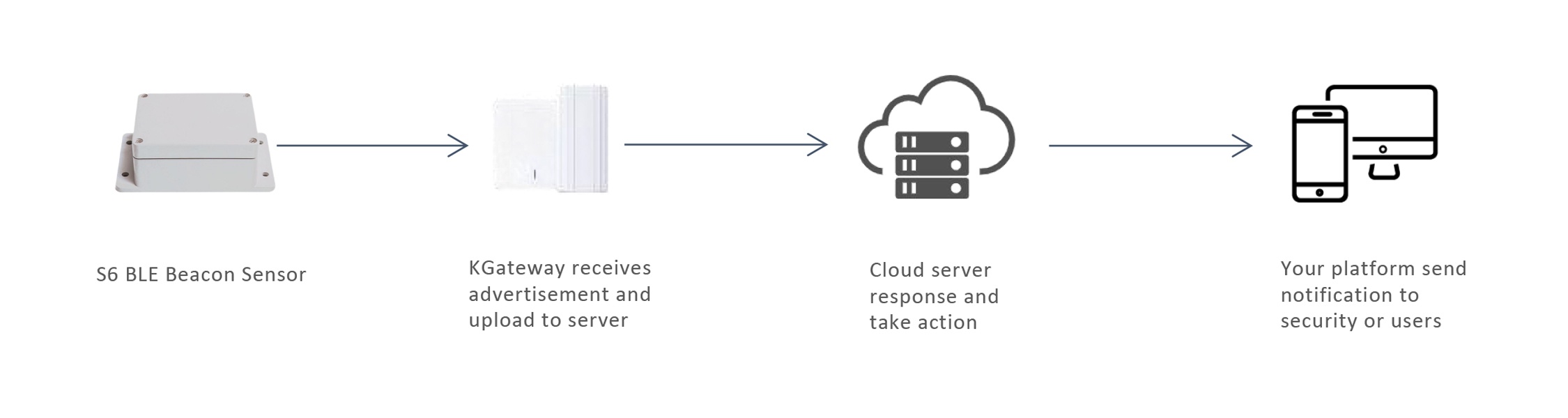

>> how it works

>> PRODUCT Application

>> Specification

Basic Specification
Technical Specification
Broadcast Specification

Size	88mm58mm 35mm
Material	ABS
Color	Gray (colors customizable)
Weight	103g (with battery)
Battery capacity	2600mAh ER14505 Lithium battery
Battery life	8 years
IP rating	IP67 waterproof
Working temperature	-40℃ ~+70℃
Working humidity	0 ~ 99% RH
Button	1 Button (internal)
Switch	Hall
Sensor	Temperature or Humidity Probe Accelerometer Sensor
Config APP	KBeaconPro
Accelerometer	Range: +/-2g Measure Accuracy: +/-32mg
Bluetooth Version	BLE 5.0/ BLE 4.x
OTA	Yes
TX power	-40~8dBm
Broadcast Interval	100ms ~ 40000ms
Transmit Range	300 meters in open area

Model	S6	S6T1	S6T2	S6T3
Probe
Waterproof	IP67	IP68	IP68	IP68
Cable@length	NA	PFA Cable @1m	Silicone Cable @1m	Silicone Cable @1m
Humidity Measurement	Range: 0~100% Measure Accuracy: • 0 ~ 80℃: ±4% • ≤0 or ≥ 80℃: ±6%	NA	NA	NA
Temperature Measurement	Range: -30℃ ~ 75℃ Measure Accuracy: • 0 ~ 60℃: ±0.4℃ • -20 ~ 0℃: ±0.6℃ • < -20 or > 60℃: ±0.8℃	Range: -50℃ ~ 280℃ Measure Accuracy: • -30 ~ -20℃: ± 1.0℃ • -20 ~ 0℃: ± 0.6℃ • 0 ~ 40℃: ± 0.5℃ • 40 ~ 70℃: ± 0.8℃ • 70 ~ 100℃: ± 1.5℃ • 100 ~150℃: ± 2.0℃	Range: -50℃ ~ 200℃ Measure Accuracy: • -30 ~ -20℃: ± 1.0℃ • -20 ~ 0℃: ± 0.6℃ • 0 ~ 40℃: ± 0.5℃ • 40 ~ 70℃: ± 0.8℃ • 70 ~ 100℃: ± 1.5℃ • 100 ~150℃: ± 2.0℃	Range: -30℃ ~ 160℃ Measure Accuracy: • -30 ~ -20℃: ± 1.0℃ • -20 ~ 0℃: ± 0.6℃ • 0 ~ 40℃: ± 0.5℃ • 40 ~ 70℃: ± 0.8℃ • 70 ~ 100℃: ± 1.5℃ • 100 ~150℃: ± 2.0℃

Type(channel)	Item	Default settings
Ksensor (on)	Battery level Temperature Humidity Acceleration X/Y/Z	Actual measurements
iBeacon (off)	UUID Major/Minor Measured power	Not broadcast by default
Eddystone UID/URL/TLM (off)	Instance ID Namespace ID Measured power	Not broadcast by default
System	MAC address Model ID Battery percent Software version	Assigned at factory S6:60; S6T:61 0%~ 100% 6.x
Password	Password	0000000000000000(default)
Connectable mode	Connectable or not	YES
