LoRaWAN Sensor LA3d

LA3d LoRaWAN Distance Sensor –leverage ToF technology to measure distances between sensors and objects accurately. Designed for smart bin monitoring, storage monitoring, and industrial applications, these sensors transmit real-time data via LoRaWAN networks to cloud platforms, enabling efficient resource management

key features

Accurate Ranging Sensor
LoRaWAN Bands: EU868, US915
NFC, BLE and LoRaWAN remote configuration
Comprehensive Status Alerts

Robust design with IP67 waterproof and dustproof rating
Max.+20 dBm constant RF output & RX sensitivity -148 dBm.
Low power consumption for continuous operation
Operating temperature range of -30°C to 85°C.

what you can do with our gateway

Model	KG05 Plug IoT Gateway
Size	30mm30mm55mm(Excluding adapter)
Weight	150g
Material	ABS
Working temperature	-30℃~ + 70℃
Power Supply	100V-240V AC 50/60Hz
Interface	NA
Installation way	AC plug interface
Indicator	RGB LED indicator
Button	1 Config button
LED	Power and network connection status
Firmware Update	OTA

BLE Protocol	BLE4.x, BLE5.0
Bluetooth Frequency	2400MHz ~ 2480 MHz
Wireless Distance	Up to 70 meters of cover radius (open area)
Scanning ability	> 60 packets per second
Concurrent connecting and scanning beacons	Optional
RX sensitivity	-96 dBm @1Mbps,
Transmit power	4 dBm (Max)
Antenna gain	0 dBi

WiFi Protocols	IEEE 802.11b/g/n
WiFi Frequencies	2T2R 2412 MHz ~ 2484 MHz
Data Transfer Speed	IEEE 802.11n: Up to 300 Mbps IEEE 802.11g: Up to 54 Mbps IEEE 802.11b: Up to 11 Mbps
Transmit Power	IEEE 802.11n: 13 ~ 16 dBm IEEE 802.11g: 14 ~ 17 dBm IEEE 802.11b: 16 ~ 20 dBm
Receiving Sensitivity	HT40 MCS7 : -69dBm@10% PER(MCS7) HT20 MCS7 : -71dBm@10% PER(MCS7) 54M: -75dBm@10% PER 11M: -88dBm@ 8% PER
Modulate Mode	DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM
Network Protocol	HTTP(SSL/TLS) MQTT(SSL/TLS)
Wireless Encryption	WPA-PSK/WPA2-PSK

Smart Building

In smart buildings, the LA3D LoRaWAN distance sensor can monitor bin fill levels, trigger alerts for timely collection

Agriculture & Industry

Using the LoRaWAN Distance Sensor LA3D in Grain silo monitoring, industrial distance measurement, and pipeline inspection. For example, you can use the LA3D distance sensor to monitor the container is full or not.

Remote Monitoring and Maintenance

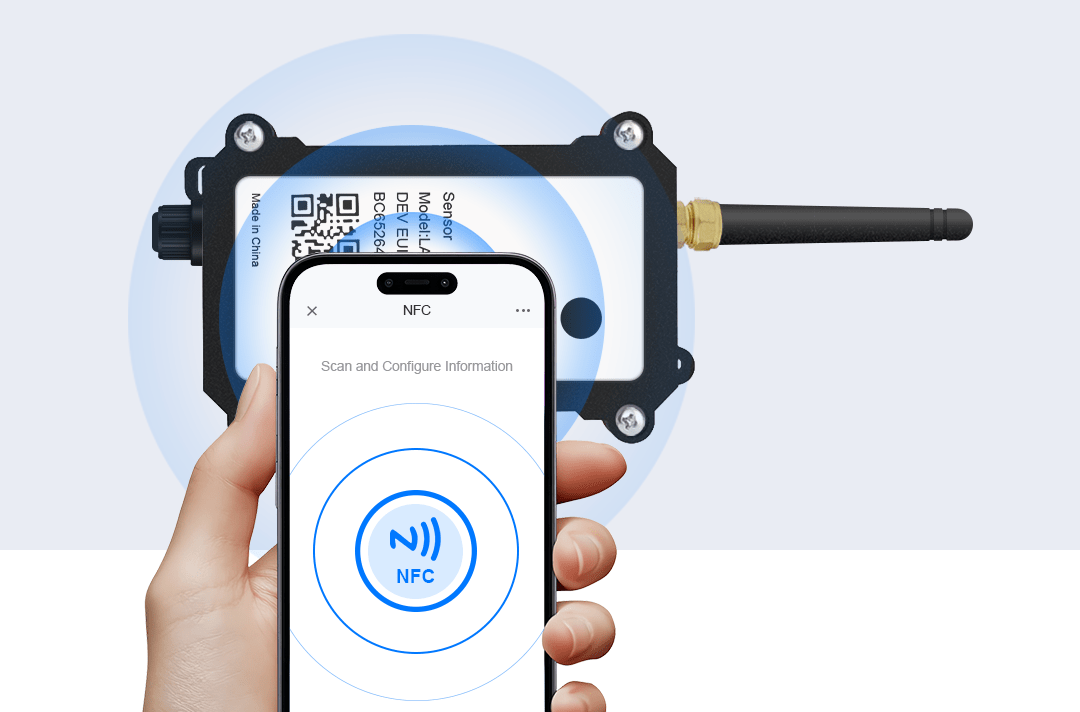

Through NFC and BLE configuration, as well as wireless OTA updates, the LA3D sensor enables remote monitoring and maintenance of devices, reducing the cost of manual inspections and improving efficiency.
