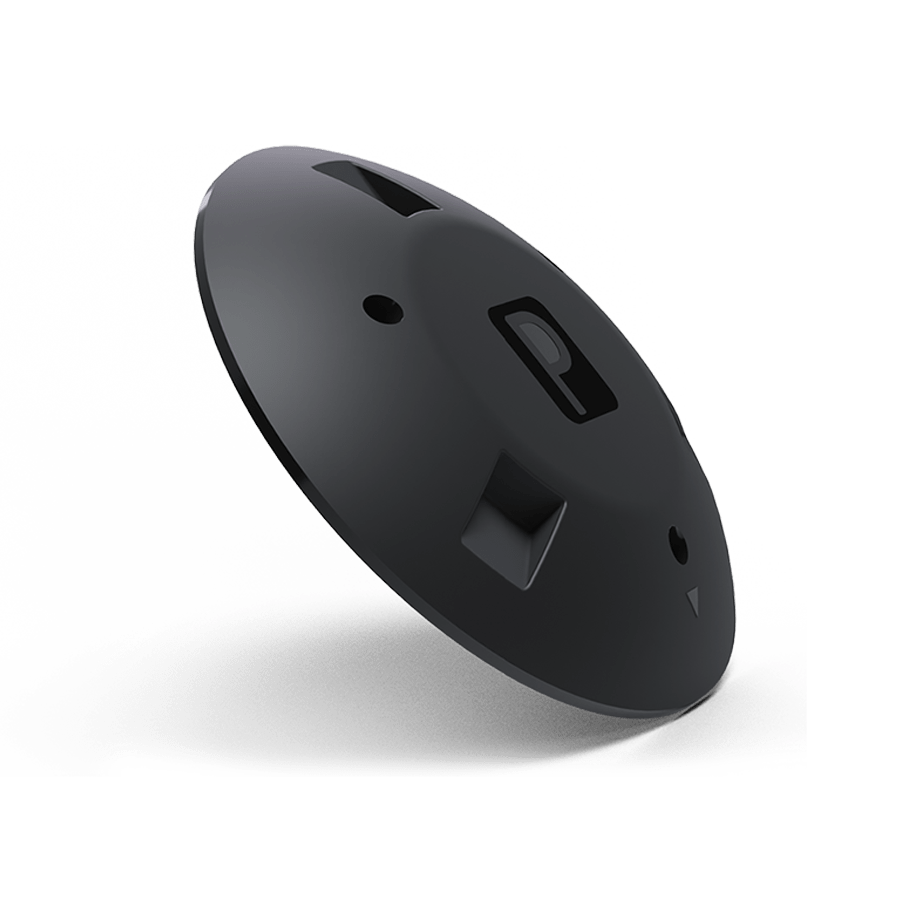

S7 Smart Car Parking Beacon

S7 is a specialized BLE Beacon designed for car parking navigation and monitoring parking spot occupancy through its built-in sensor. It features a robust housing with IP67 waterproof rating and can withstand the pressure of vehicles up to 2.5 tons.

S7 Equipped with an internal geomagnetic sensor, the S7 accurately detects changes in the surrounding magnetic field causedby vehicles, allowing it to monitor if a parking spot is occupied. The S7 also boasts a high-capacity design, with a built-in5200mAh lithium battery, offering a battery life of over 10 years at 8dBm TX power.

IP67 Waterproof

Over 10 Year Lifespan

PHY Coded Long Range

IK 08 Protection

>> DESCRIPTION

  • Up to 10 years battery life
  • Route navigation and parking spot monitoring
  • Robust housing with IP67 waterproof rating.
  • All the parameters of this product can be modified via configuration App or KGateway.

>> how it works

>> PRODUCT Application

Parking Spot Management

The S7 is equipped with a geomagnetic sensor that accurately detects the availability of parking spaces, enhances the efficiency of space usage, and provides precise positioning within parking lots or to specific destinations.

Route Navigation

When a driver enters an indoor parking garage, the app on their smartphone detects the signals from the nearest S7 beacons. The app uses these signals to determine the driver’s exact location and then guides them to the nearest available parking spot.

>> Specification

Size

Dia 175mm*38mm

Material

ABS

Color

Black(colors customizable)

Weight

290g (with battery)

Battery capacity

 5200mAh Lithium battery

Battery life

10 years

IP rating

IP67 waterproof

Working temperature

-20℃ ~+60℃

Working humidity

0 ~ 99% RH

Switch

Inside Swich

Sensor

Geomagnetic Sensor

Config APP

KBeaconPro

Bluetooth Version

 BLE 5.0/ BLE 4.x

OTA

 Yes

TX power

-40~8dBm

Broadcast Interval

100ms ~ 40000ms

Transmit Range

150 meters (8dBm on Legacy mode)
300 meters (8dBm on PHY code mode)

Type(channel)

Item

Default settings

Ksensor (on)

Battery level
Temperature

Actual measurements

iBeacon (off)

UUID
Major/Minor
Measured power

Not broadcast by default

Eddystone UID/URL/TLM (off)

Instance ID
Namespace ID
Measured power

Not broadcast by default

System

MAC address
Model ID
Battery percent
Software version

Assigned at factory
S7: 74
0%~ 100%
6.x

Password

Password

0000000000000000(default)

Connectable mode

Connectable or not

YES
