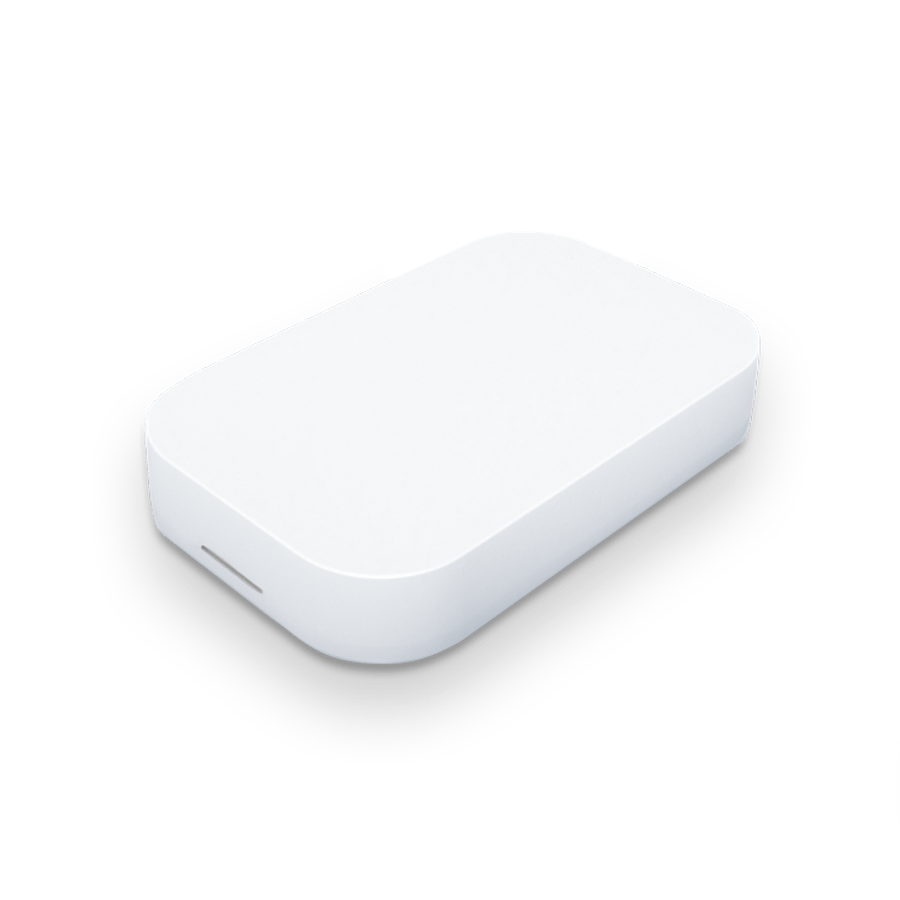

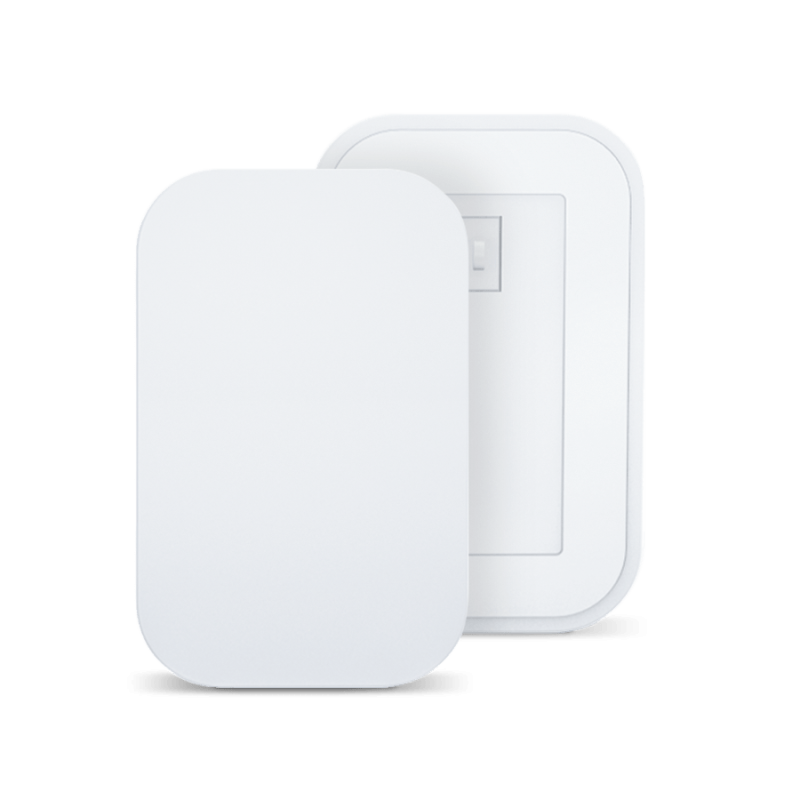

S8 Anti-Tamper Beacon

Anti-Tamper Beacon
S8 anti-tamper beacon is wireless BLE5.0 Beacon tag with anti-tamper function.

It is equipped with an internal sensor, which can detect whether the device is installed or not, if S8 is removed from the tracked object, an alert will be triggered.

S8 tamper resistance beacon tag can store tampering history and can save up to 60,000 records in the device. The tampering history records can be read via mobile App or KGateway. With small size and up to 3 years battery life, S8 Beacon tag is ideal for asset tracking solutions in logistics, warehouses, pharmacies, museums and other industries.

Anti-Tamper

60,000 records

Compact Size

IP65 Waterproof

DESCRIPTION

● Support Anti-Tamper (Tampering alert)

● 3 years battery life, battery is replaceable

● With IP65 waterproof rating

● All parameters can be configured via App or KGateway

HOW IT WORKS

APPLICATION

Asset Tracking

S8 anti-tamper beacon can be used for asset tracking and management solutions in various scenarios, such as logistics, warehouses, hospitals, etc.
It triggers the alert to notify in case it’s removed by someone. It’s

The tamper resistance beacon tag can track assets in real-time and manage inventory more efficiently.

Indoor Navigation

S8 tampering alert beacon tag can achieve indoor and outdoor positioning. Its tamperproof feature can help to easy management in case someone remove it by mistake.
S8 tamper resistance beacon tag widely used in proximity marketing, personnel tracking and indoor navigation in shopping malls, amusement parks, restaurants and other large places.

SPECIFICATION

Size

30mm*48mm*8mm

Material

ABS

Color

White (colors customizable)

Weight

12g (with battery)

Battery capacity

600mAh CR2450 battery (replaceable)

Battery life

3 years

* Base on Broadcast Interval 1000 milliseconds and TX power 0dBm

IP rating

IP65 waterproof

Working temperature

-20℃ ~+60℃

Working humidity

0 ~ 99% RH

Switch

Anti-tamper switch

Sensor

Tampering Sensor

Config APP

KBeaconPro

Bluetooth Version

 BLE 5.0/ BLE 4.x

OTA

 Yes

TX power

-40~4dBm

Broadcast Interval

100ms ~ 40000ms

Transmit Range

100 meters

*Base on installing in open space

Type(channel)

Item

Default settings

Ksensor (on)

Battery level
Temperature
Tamperproof alert

Actual measurements

iBeacon (off)

UUID
Major/Minor
Measured power

Not broadcast by default

Eddystone UID/URL/TLM (off)

Instance ID
Namespace ID
Measured power

Not broadcast by default

System

MAC address
Model ID
Battery percent
Software version

Assigned at factory
S8: 89
0%~ 100%
6.x

Password

Password

0000000000000000(default)

Connectable mode

Connectable or not

YES
