Bluetooth Tamperproof Beacon Bracelet W7
DESCRIPTION
W7 Tamperproof Beacon is wearable bracelet Beacon with ultra low power chipset nRF52 series and BLE 5.0 technology.
W7 Tamperproof Beacon is a strong and duratble wristband Beacon designed for adult in hospital, prison and etc. It support tamper alert and cut-off alert, it will trigger preset BLE advertisement in case it’s tamper or cut-off happen. It is designed for people management and indoor location-based service.
W7 tamperproof beacon is built with temperature sensor, it monitor body temperature and broadcast via Eddystone TLM and KSensor protocol.
W7 Tamperproof beacon support upt to 40,000 offline temperature storage.
FEATURES
Bluetooth Low Energy, rechargeable
Ultra-low power consumption chipset nRF52 series
Tamperproof: trigger advertisement if it’s cut, dissambled or taken off.
Up to offline 40,000 temperature records
Support button trigger (SOS button/ Remote control/ Panic button etc.)
Provided with your own configuration
100% Configurable Parameters via app (Android & iOS)
DOWNLOAD
Tamperproof, cut-off alert
SOS button support
Body temperature monitoring
Additional Motion sensors available
Compatible with iBeacon and Eddystone (UID, URL, TLM) at the same time.
All the parameters of this product can be modified via configure APP.

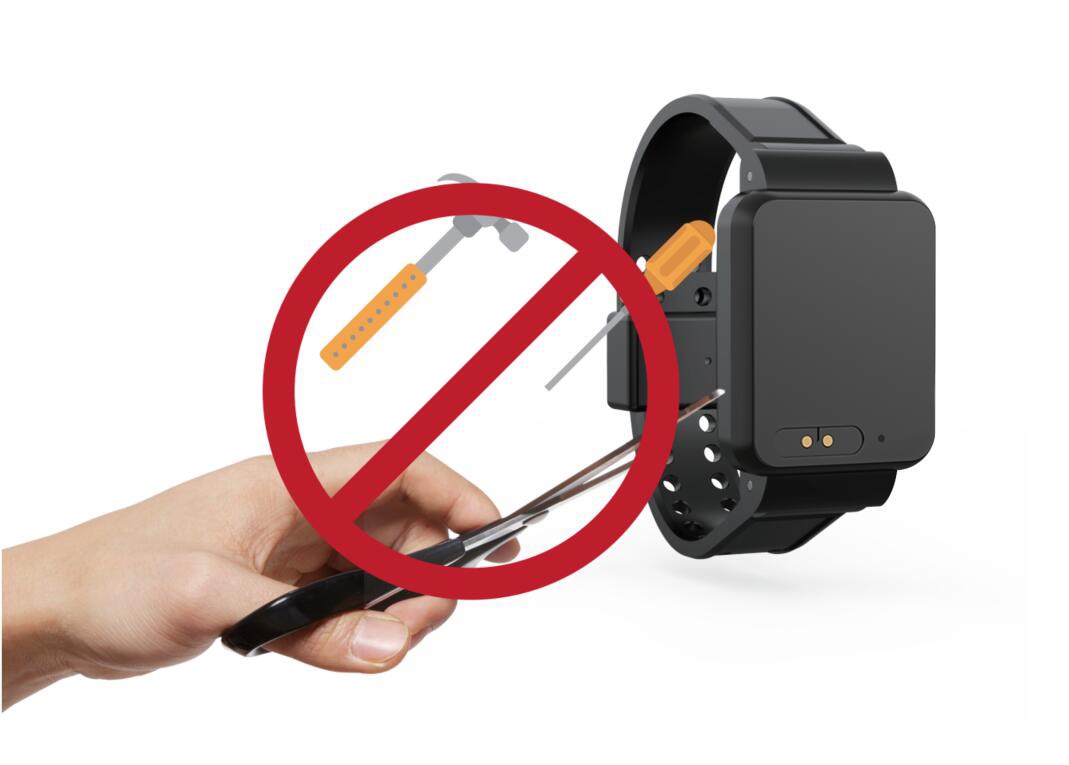

Tamper Alert
Smart mechanism design, the device will trigger advertisement in case the wristband is cut, disassembled or taken off.

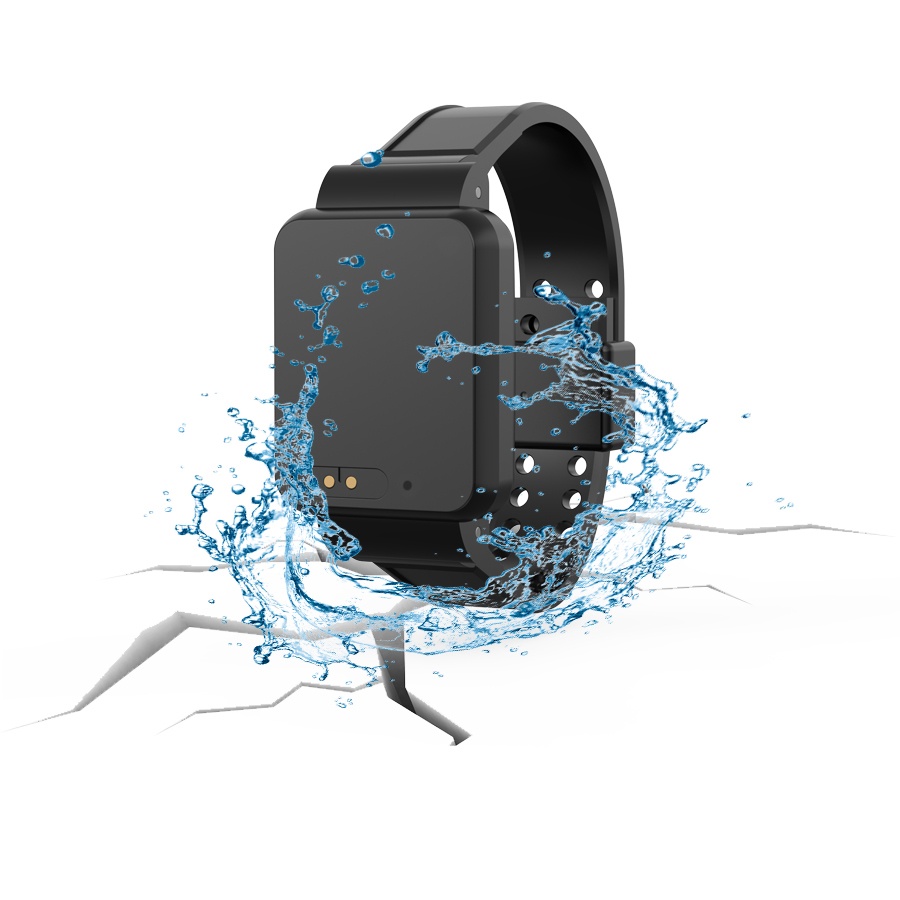

Robust and IP67 Waterproof Design
With extraordinary robust and waterprooof design, it stands in variety of harsh environments, such as prison, detention house.

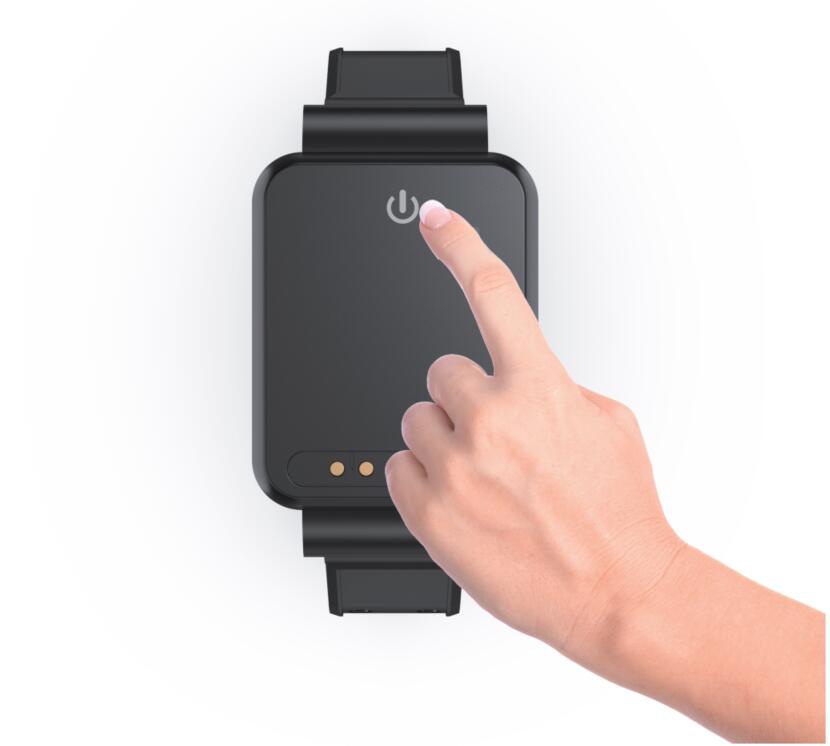

Support SOS Button
With touch button, it can use as SOS/Panic button, Remote controller, and etc.

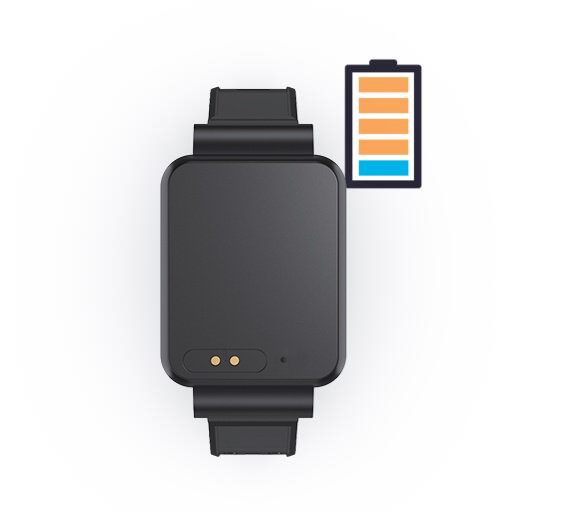

BLE5.0, Ultra-long battery life
With nRF52 series BLE5.0 low energy consumption, it lasts for more than 1 year per charge.

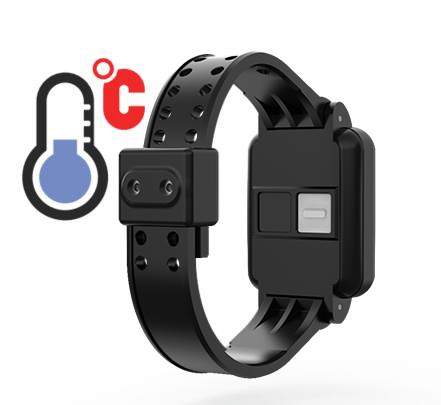

Body temperature monitoring
The body temperature data can upload to cloud via gateway, or up to 40,000 records can store in memeory, and read them when you need.
SPECIFICATIONS
| Material for shell | ABS+silicone loop |
| Color | Black, red, blue |
| Size | 45mm*50mm*260mm |
| Weight | 48g |
| Accessory | Ring silicone |
| Battery | Li-polymer battery (rechargeable) |
| Battery life | Up to 18 months per charge |
| Waterproof level | IP67 |
| Main Features | |
| Support Protocol | ◆Apple iBeacon ◆Eddystone URL ◆Eddystone UID ◆Eddystone TLM |
| OTA | Support(Update by air) |
| Button | 1 Button (touch button) |
| LED | 1 LED |
| Sensor | Body temperature sensor |
| Rechargeable | Yes |
| Programmable parameters | ◆Tx Power/Advtisement period/Lock password； ◆iBeacon UUID/Major/Mior； ◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID |
| Buzzer | Sound optional |
| Others | ◆Support Non connection advertisment Mode ◆Support Configruation advertisment Mode ◆Support Factory reset |
| Physical features | |
| Chipset | nRF52 series |
| Tx Power | -40~4dBm |
| BLE | BLE5.0 |
| Wireless Frequency Band | 2.4GHz |
| Transmitting range | ◆BLE4.0/5.0: up to 100m； *The max. range 100 meters in the open space. The range depends on physical environment. |
| Powered by | Li-polymer battery (rechargeable) |
| Display way | Beacon Gateway or via Phone App |
| Beacon Factory Default Setting | |
| iBeacon | ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001 ◆MajorID:0x0001 ◆MinorID: 0x0001 |
| Tx Power | 0dBm |
| Broadcast interval | 1000ms |
| Eddystone UID | ◆Namespace ID: 6B6B6D636E2E636FD01 ◆InstanceID ID:0x000000000001 |
| Eddystone URL | URL: www.kkmcn.com |
| Eddystone TLM | ◆Battery voltage; ◆Temperature; ◆Advertisements count/Time since power-up |
| Default Lock Code | 16Byte Lock Code: ◆0x3030303030303030303030303030303030303030 |
| Working environment | |
| Working temperature | -40℃~+70℃ |
| Storage temperature | 10℃~+25℃，≤65%RH |
