Tamperproof Beacon, Cut-off alert Medical Beacon W3
DESCRIPTION
W3 Tamperproof Beacon
Tamperproof Feature
Cut-off alert feature
Support SOS Button
Bluetooth Low Energy 4.0/5.0
Ultra-low power consumption chipset Nordic nRF52 series
Support iBeacon/ Eddystone at the same time
Logo and color customizable
Provide with your own configuration
100% configuratble parameters via App (Both Android & ios)

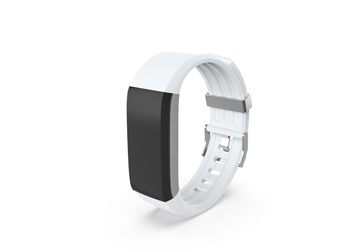

W3 tamperproof medical wristband is a smart wristband, designed for quarantine management with Geo-fencing. With BLE5.0 and its smart design, the W3 Bluetooth Tamperproof Beacon would trigger the alert(advertisement) when the wristband is being cut off.
Also, it supports SOS button feature, the users can use the button on W3 and call for help.
W3 Medical beacon uses eco-friendly material for band, it used in hospital, nursing house and etc.
W3 wristband is commonly applied to real-time monitoring and tracking of personnel in check points, airports, hospitals,
schools, stations, factories, communities, shopping malls, stadiums。
W3 Bluetooth Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. W51 Bluetooth 5.0 Beacon can be heard and interpreted by ios and Android BLE-enabled devices that are equipped with many mobile apps.
FEATURES
Bluetooth Low Energy
Ultra-low power consumption chipset nRF52 series
Support 5url broadcasting
Firmware update Over The Air (OTA)
Logo and color customizable (MOQ)
Provided with your own configuration
100% Configurable Parameters via app (Android & iOS)
DOWNLOAD
Easily Portable with Wearable
Cut-off alert feature
Additional Motion sensors available
Optional NFC for door access, identity
Compatible with iBeacon and Eddystone (UID, URL, TLM) at the same time.
All the parameters of this product can be modified via configure APP.
HOw it works
SPECIFICATIONS
Material for shell | ABS+TPU |
Color | White |
Size | Dia 30mm*250mm |
Weight | 15g |
Accessory | N/A |
Battery | CR2025 |
Battery life | 4 months |
Waterproof level | IP67 |
Main Features | |
Support Protocol | ◆Temperproof alert ◆Apple iBeacon ◆Eddystone URL ◆Eddystone UID ◆Eddystone TLM |
OTA | Support(Update by air) |
Button | 1 Button (touch button) |
LED | 1 LED |
Sensor | Cut-off/Temperproof alert |
Rechargeable | NA |
Programmable parameters | ◆Tx Power/Advtisement period/Lock password; ◆iBeacon UUID/Major/Mior; ◆Compatible with Eddystone,URL,UID(NamespaceID, SerialID |
Buzzer | N/A |
Others | ◆Support Non connection advertisment Mode ◆Support Configruation advertisment Mode ◆Support Factory reset |
Physical features | |
Chipset | nRF52 series |
Tx Power | -40~4dBm |
BLE | BLE5.0 |
Wireless Frequency Band | 2.4GHz |
Transmitting range | ◆BLE4.0/5.0: up to 100m; *The max. range 50 meters in the open space. The range depends on physical environment. |
Powered by | CR2025 |
Display way | Beacon Gateway or via Phone App |
Beacon Factory Default Setting | |
iBeacon | ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001 ◆MajorID:0x0001 ◆MinorID: 0x0001 |
Tx Power | 0dBm |
Broadcast interval | 1000ms |
Eddystone UID | ◆Namespace ID: 6B6B6D636E2E636FD01 ◆InstanceID ID:0x000000000001 |
Eddystone URL | URL: www.kkmcn.com |
Eddystone TLM | ◆Battery voltage; ◆Temperature; ◆Advertisements count/Time since power-up |
Default Lock Code | 16Byte Lock Code: ◆0x3030303030303030303030303030303030303030 |
Working environment | |
Working temperature | -20℃ ~+65℃(default); -30℃ ~+70℃(optional) |
Storage temperature | 10℃~+25℃,≤65%RH |
