DESCRIPTION
Kid Wearable Beacon
Design for Kids
Bluetooth Low Energy 5.0
Ultra-low power consumption chipset nRF52 Series
Support iBeacon/ Eddystone at the same time
Logo and color customizable
Provide with your own configuration
100% configuratble parameters via App (Both Android & ios)

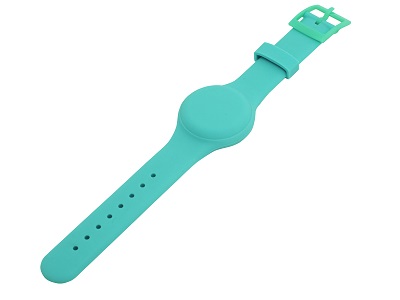

W4 Beacon is a wearable wristband Beacon with ultra low power chipset Ti CC2640 series and BLE 5.0 technology. W4 Beacon is designed for 3-12 year -old kids.
It has a bracelet shape, waterproof structure, it is designed for the indoor location- based service and other services.
W4 Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. W4 Beacon can be heard and interpreted by ios and Android BLE-enabled devices that are equipped with many mobile apps.
FEATURES
Bluetooth Low Energy
Ultra-low power consumption chipset
Support 5url broadcasting
Firmware update Over The Air (OTA)
Logo and color customizable
Provided with your own configuration
100% Configurable Parameters via app (Android & iOS)
DOWNLOAD
Easily Portable with wearable
Additional Motion sensors available
Compatible with iBeacon and Eddystone (UID, URL, TLM) at the same time.
All the parameters of this product can be modified via configure APP.
SPECIFICATIONS
| Material for shell | ABS+silicone loop |
| Color | mint |
| Size | The dial size:32mm；Length of strap:187mm; |
| Weight | 16g |
| Accessory | Ring silicone |
| Battery | CR2025 |
| Battery life | 6 months |
| Waterproof level | IP56 |
| Main Features | |
| Support Protocol | ◆Apple iBeacon ◆Eddystone URL ◆Eddystone UID ◆Eddystone TLM |
| OTA | Not support |
| Button | 1 Button |
| LED | 1 LED |
| Sensor | NO |
| Rechargeable | No(Can replace the battery) |
| Programmable parameters | ◆Tx Power/Advtisement period/Lock password； ◆iBeacon UUID/Major/Mior； ◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID |
| Buzzer | N/A |
| Others | ◆Support Non connection advertisment Mode ◆Support Configruation advertisment Mode ◆Support Factory reset |
| Physical features | |
| Chipset | nRF52 Series |
| Tx Power | -40~4dBm |
| BLE | BLE5.0 |
| Wireless Frequency Band | 2.4GHz |
| Transmitting range | ◆BLE4.0 *100m； *The max. range 100 meters in the open space. The range depends on physical environment. |
| Powered by | 3V CR2025 |
| Display way | Beacon Gateway or via Phone App |
| Beacon Factory Default Setting | |
| iBeacon | ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001 ◆MajorID:0x0001 ◆MinorID: 0x0001 |
| Tx Power | 0dBm |
| Broadcast interval | 1000ms |
| Eddystone UID | ◆Namespace ID: 6B6B6D636E2E636FD01 ◆InstanceID ID:0x000000000001 |
| Eddystone URL | URL: www.kkmcn.com |
| Eddystone TLM | ◆Battery voltage; ◆Temperature; ◆Advertisements count/Time since power-up |
| Default Lock Code | 16Byte Lock Code: ◆0x3030303030303030303030303030303030303030 |
| Working environment | |
| Working temperature | -20℃ ~+65℃(default); -30℃ ~+70℃(optional) |
| Storage temperature | 10℃~+25℃，≤65%RH |
