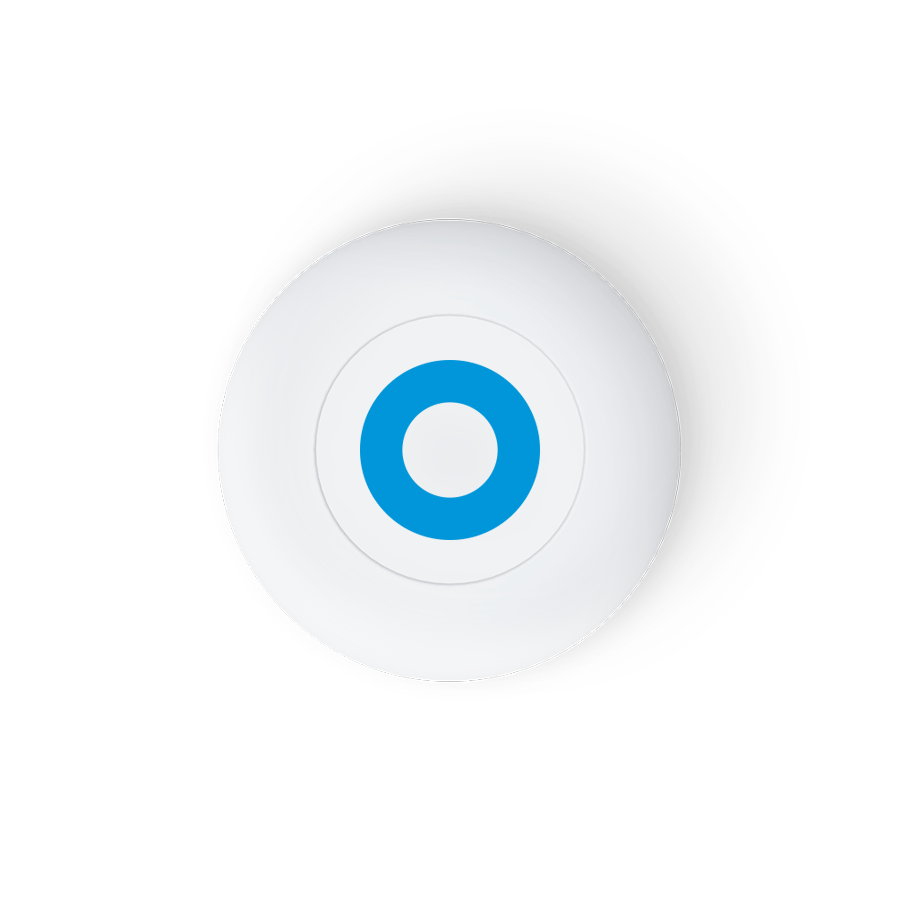

W1 Wearable Tag is a wireless BLE5.0 Beacon tag designed to work with Airtags accessories, this design allows it to be used with a wide range of compatible accessories for added convenience. Users can choose a keychain case or a wristband case for personalized lifestyle and functional requirements.
W1 wearable tag is equipped with a programmable push button that can be used as an emergency panic button. With small size and various optional accessories, W1 Beacon is ideal for people indoor location tracking service and workplace staff safety solutions.
Wearable
Panic Button
Small Size
Long Battery Life
Waterproof

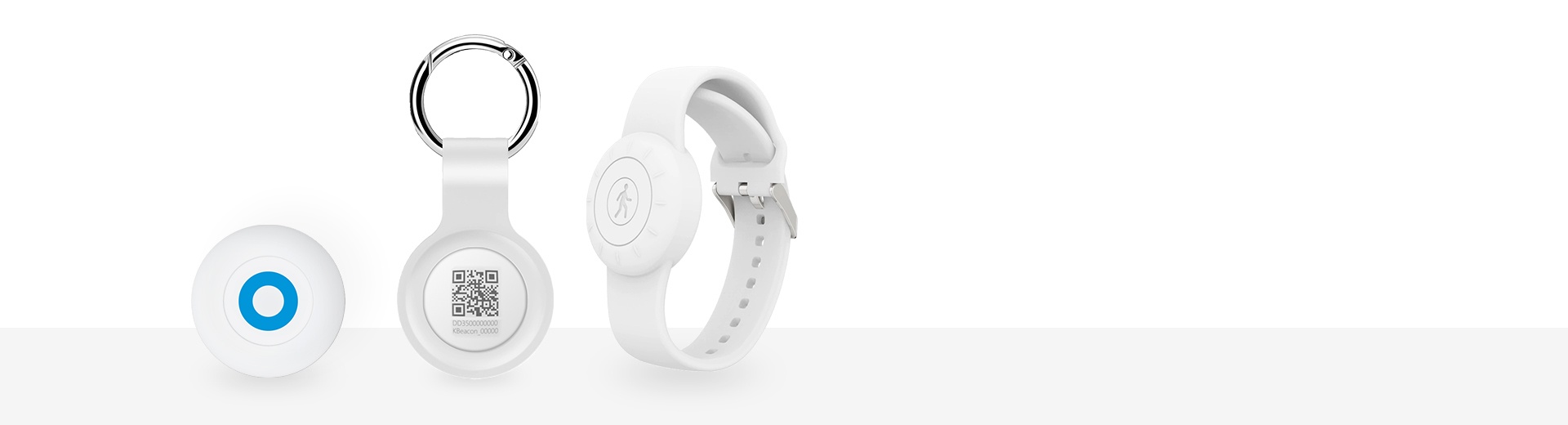

W1 beacon is a wearable (as a keychain or wristband) Beacon. With comprehensive design, it can work with a wide range of AirTag accessories. W1 wearable tag is ideal for people indoor location tracking and workplace staff safety solutions.
W1 tag has a big push button, it can be used as an emergency SOS button. It can work as a personal panic button and is also very ideal for elderly healthcare monitoring solutions.
W1 wearable tag beacon can be used for asset tracking and management solutions in various scenarios, such as logistics, warehouses, hospitals, etc. It can track assets in real-time and manage inventory more efficiently.
Size | dia 32.2mm*8mm |
Material | ABS |
Color | White (colors customizable) |
Weight | 8g (with battery) |
Battery Capacity | 210mAh CR2032 battery (replaceable) |
Battery Life | 16 months |
Waterproof | IP63 |
Working Temp&Humdity | -20℃ ~+60℃ 0 ~ 99% RH |
Switch | 1 button |
Configure APP | KBeaconPro |
Sensor | Accelerometer (optional) |
Bluetooth Version | BLE 5.0/ BLE 4.x |
OTA | Yes |
TX Power | -40 ~ 4 dBm |
Broadcast Interval | 100ms ~ 40000ms |
Transmit Range | 100 meters (Open space) |
Type(channel) | Item | Default Settings |
IBeacon (ON) | ● UUID ● Major/Minor ● Measured power | 7777772E-6B6B-6D63-6E2E-636F6D000001 Major and Minor combination is unique -59dBm |
KSensor (off) | ● Battery level ● Temperature | Not broadcast by default |
Eddystone UID/URL/TLM (off) | ● Instance ID ● Namespace ID ● Measured power | Not broadcast by default |
System | ● MAC Address ● Model ID ● Battery Percent ● Software Version | Assigned at factory W1: 112 0%~ 100% 6.x |
Password | ● Password | 0000000000000000(default) |
Connectable Mode | ● Connectable or not | Yes |
