KG06 WiFi Ethernet Gateway

WiFi Ethernet Gateway KG06

KG06 WiFi Ethernet Gateway is advanced Bluetooth gateway, designed for seamless integration in variety of environments, from hospital, warehouse, office to other workplace.

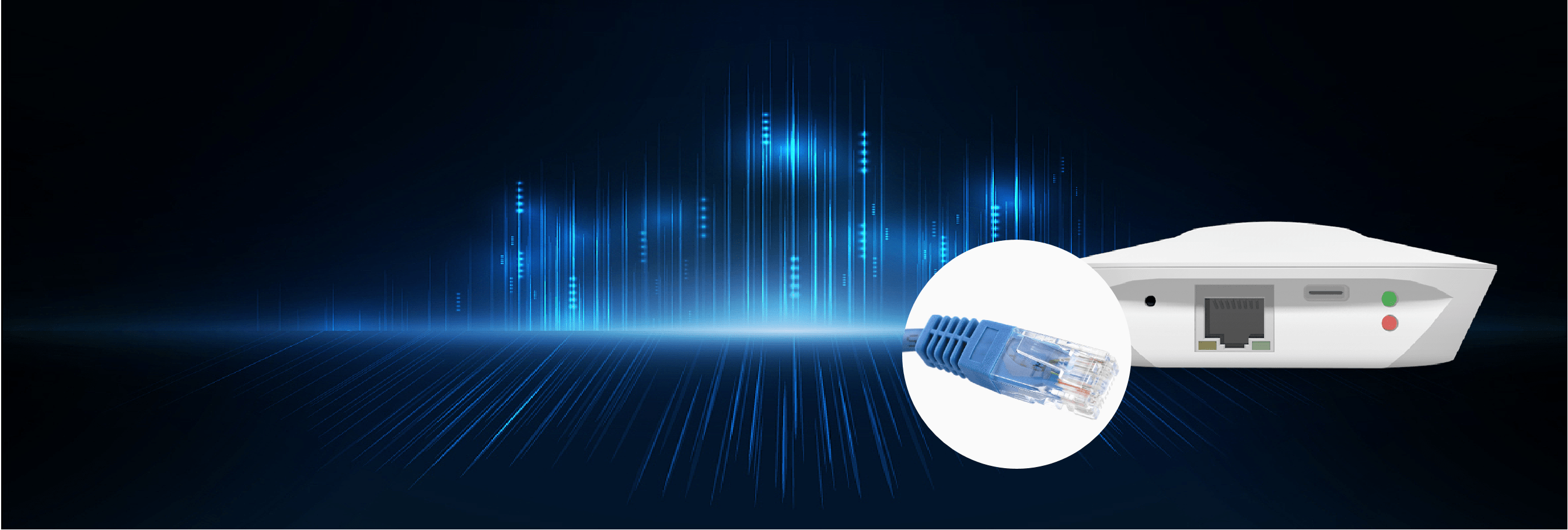

KG06 WiFi Ethernet Gateway provides flexible set up and deployment options. It support both WiFi and ethernet. It can be powered up by 5V DC by Type C or PoE.

KKM KG06 gateway supports various BLE4.0/4.1/4.2/5.0 devices.

● Stable WiFi or PoE connection

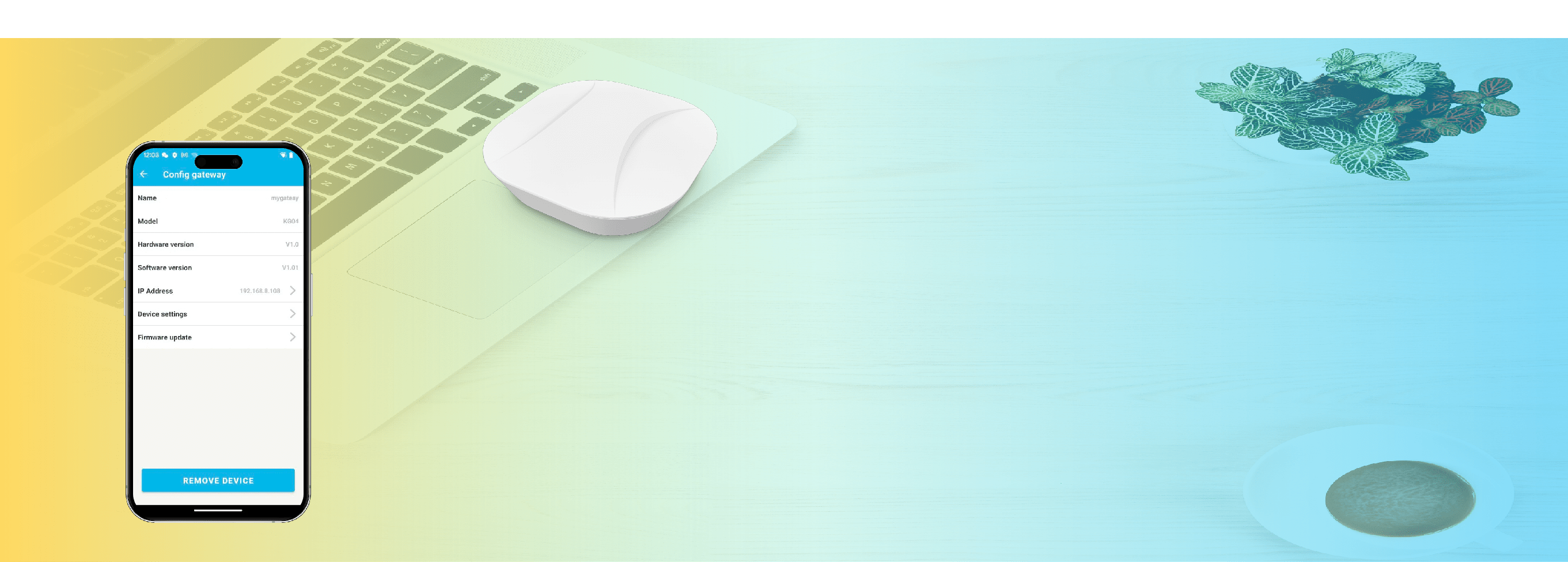

● Easy set up by KKM KGateway App
● Configurations from Cloud
● 5V DC Type C or PoE for power supply

key features

Reliable Ethernet+WIFI


Easy Set Up & Deployment

Strong Capability & Easy Integration

High Throughput & Data Filterable

how it works

K15: Staff or asset management
K21: beacon with beep
K4: IP67 waterproof with accelerometers sensor
W4: Children’s Bracelet beacon
U1: USB type beacon

W51: Wristband Beacon, support vibration, rechargeable
K6: Temperature & humidity sensor
K7: Credit card beacon with RFID
K8: Mounting Beacon, with accelerometer sensor
K9: Ultra-long battery life Beacon

what you can do with our gateway

Smart Healthcare

Utilize the KG06 WiFi Ethernet gateway alongside other BLE sensors and beacon devices in healthcare settings. It effectively manages Bluetooth medical equipment and various sensor devices, making it an excellent choice for nursing, hospitals, and similar environments.

By receiving real-time data from BLE 4.0/5.0 beacons or other BLE devices, KG06 Ethernet WiFI Gateway enables the mapping and monitoring of hospital equipment and medication routines.

Smart Warehouse

The KG06 Ethernet WiFi gateway enables efficient asset tracking, inventory management, temperature monitoring and etc, avoids counting manually or scanning by NFC one by one. KG06 Ethernet WiFi gateway provide real-time data collecting and uploading to cloud.
The PoE (power over Ethernet) allows both data transmission and power supply, which simple your deployment.

SPECIFICATION

Model

KG06 Ethernet WiFi Gateway

Size

105mm*105mm*35mm

Weight

103g

Material

ABS

Working temperature

-30℃~ + 85℃

Power Supply

DC 5V/1A, 802.3af POE

Interface

NA

Installation way

Screws or adhesive tape

Indicator

2 x RGB LED indicator

Button

1 reset button

LED

Power and work status

Firmware Update

OTA

BLE Protocol

BLE4.x, BLE5.0

Bluetooth Frequency

2400MHz ~ 2480 MHz

Wireless Distance

Up to 70 meters of cover radius (open area)

Scanning ability

>70 packets per second

Concurrent connecting
and scanning beacons

Optional

RX sensitivity

-96 dBm @1Mbps,

Transmit power

4 dBm (Max)

Antenna gain

3 dBi

WiFi Protocols

IEEE 802.11b/g/n

WiFi Frequencies

2T2R 2412 MHz ~ 2484 MHz

Data Transfer Speed

IEEE 802.11n: Up to 300 Mbps

IEEE 802.11g: Up to 54 Mbps

IEEE 802.11b: Up to 11 Mbps

Transmit Power

IEEE 802.11n: 13 ~ 16 dBm

IEEE 802.11g: 14 ~ 17 dBm

IEEE 802.11b: 16 ~ 20 dBm

Receiving Sensitivity

HT40 MCS7 : -69dBm@10% PER(MCS7)

HT20 MCS7 : -71dBm@10% PER(MCS7)

54M: -75dBm@10% PER

11M: -88dBm@ 8% PER

Modulate Mode

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM

Network Protocol

HTTP(SSL/TLS)

MQTT(SSL/TLS)

Wireless Encryption

WPA-PSK/WPA2-PSK
